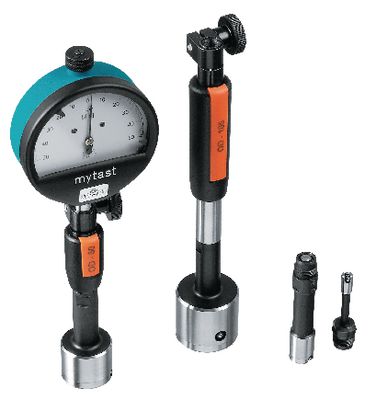

Standard - Two-point comparison measuring instrument with hardened measuring sleeve and with a repeatability of 0.5...1 µm (depending on diameter Ø), suitable for very precise applications in quality assurance and in series production. Precise measurement results can be obtained by all users due to the self-centering of the measuring sleeve in the borehole. Dial gauges, fine pointers or other transducers with a shaft Ø of 8 mm can be used in the instrument holder
119110.
Package contents:Delivered in transport packaging
without dial gauge, without instrument holder.
Please specify the nominal Ø and required tolerance when ordering.Example:
Ø 35 H7
Ø 35 mm +0.15 / -0.01
Ø 34.990 / 35.005 mm
