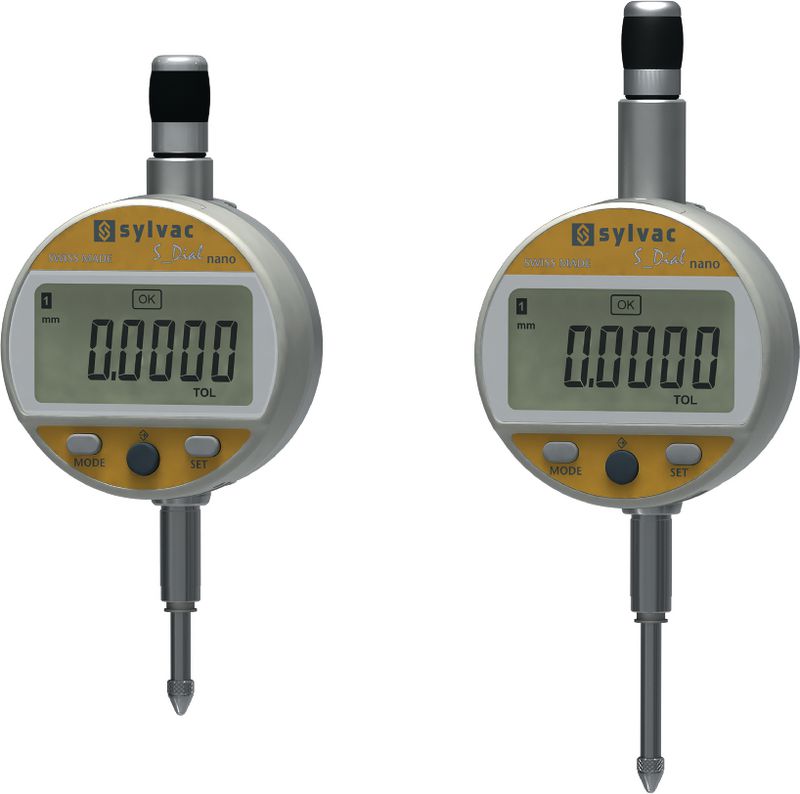

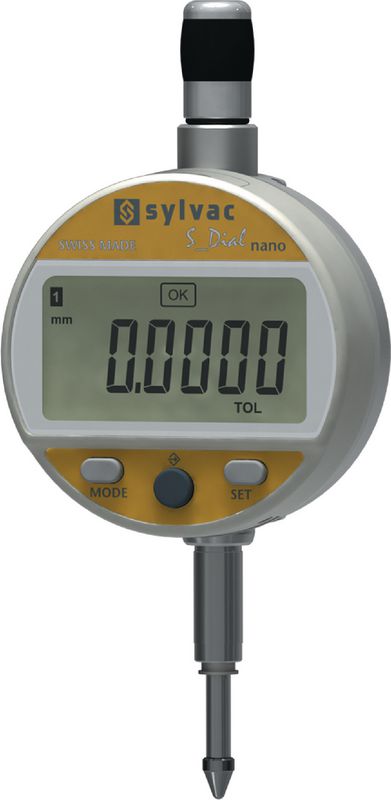

Dial gauge digital S_DIAL WORK NANO / NANO SMART IP54

SwissMade - 2-year guarantee

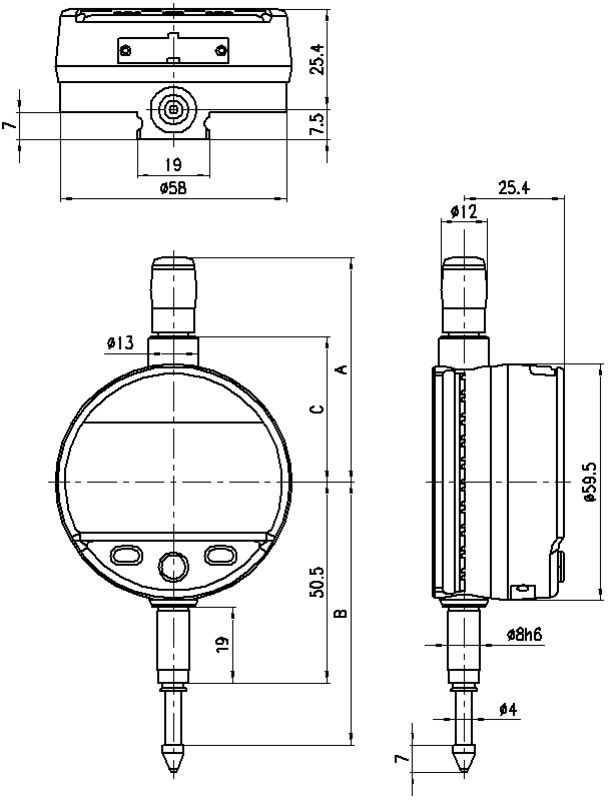

Programmable digital dial indicator made of aluminium. Mounting shaft Ø 8-h6, exchangeable probe tips M2.5, operation via signal line Power to USB or RS-232 enables operation without battery.

Designs:
121470.0100/.0300: Data output: Proximity, Power

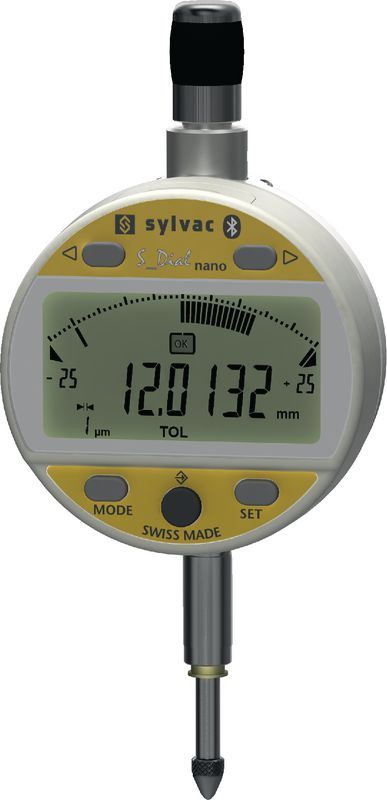

121470.0200/.0250/.0400/.0450: Data output: Proximity, Power, Bluetooth® SMART

Type S: Standard

Features:

• LCD display can be rotated 270°
• Conversion mm/inch
• Setting display to zero
• PRESET (fixed value setting)
• REF I / REF II (references)
• TOL (tolerance input)
• MAX / MIN / DELTA function
• Conversion factor
• Reverse measuring direction
• Programmable key (functions)
• Configurable via PC

Package contents:
Delivered in transport packaging incl. inspection report.

Appropriate Measuring Inserts:
124008 Measuring inserts M2.5 FUTURO
124010 Measuring inserts M2.5
710140 Measuring insert for comparator M 2.5 VOH
735820 Polymer dial gauge feeler TECHNIWATCH

Appropriate batteries:
1 pieces 155050.1400 - CR2032 / 3.0 V (included in scope of delivery)
