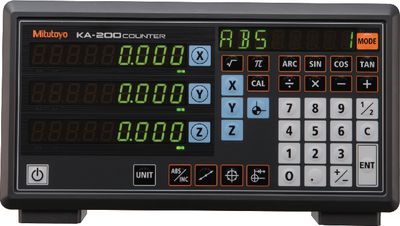

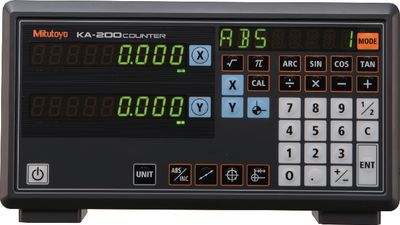

Series 174 - Universal KA-Counter. Easy to operate, multifunctional display unit for milling machines and lathes with inputs for 2 or 3 scales (depending on the model).
Features:- Resolution 0.001 / 0.005 mm (selectable)
- ABS/INC mode
- PRESET
- Diameter display
- Counting direction reversible
- Reversible mm / inch
- Zero approach machining
- Pitch machining
- Bolt-hole machining
- Scale reference point
- Programming function
- Operating temperature 0°C...+45°C
- Dimensions (HxWXD) 167 x 300 x 80 mm
Package contents:Delivered in transport packaging.
