SwissMade - 2-year guarantee

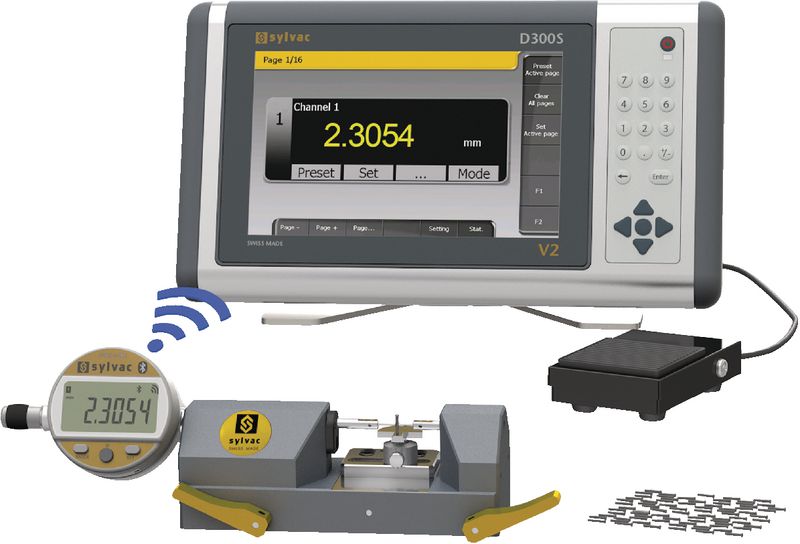

The multifunctional measurement display with large CCFL display and oil-resistant keyboard, sturdy design for shop and measuring room.

Designs:
131630.0101: Connection 6X USB + 2x SYLVAC capacitive
131630.0201: Connection 6x USB + 4x SYLVAC capacitive

Features:

Dimensions 330 x 175 x 77 mm
Display 185 x 110 mm
Touchscreen 8.5" (IP65)
Automatic detection of connected instruments
Numeric keypad / navigation keypad
Linearity correction by means of 25 points per channel
Simultaneous multichannel display
Max. 64 instruments simultaneously via software
Storage of measurement tasks / measured values
Preset values grouped or separate
Mathematical combination of channels
Numeric, analogue and statistical display
Configurable with PC (RJ-45)

More interfaces:

1 RJ-45 Ethernet connection (Filetransfer, configuration)
1 USB-connection for data transfer
1 input for RS-232 instruments
1 RS-485 input (131730.2000 / 131730.2100)
1 RS-232 output for data communication
1 VGA output for external monitor
Opto-coupled control outputs
2 connections for external contacts (foot switch)
USB-dongle Bluetooth® (109145.1390)

Indication:
For this measuring instrument we recommend user training in order to be able to make use of its possibilities efficiently from the very beginning. For further technical information please request a consultation.

Package contents:
Display unit, base, foot pedal, charger and operating instructions.

Appropriate accessories:
Measuring probes SYLVAC capacitive 131710
M-Bus 132020
Accessories 131730

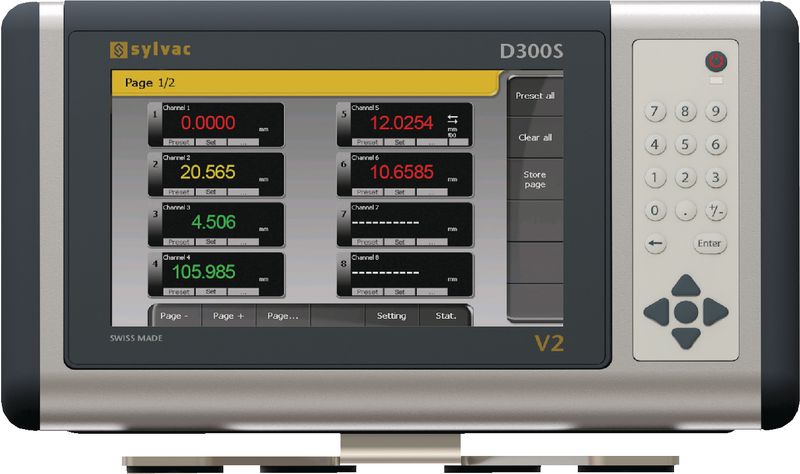

Display unit SYLVAC D300S IP40
