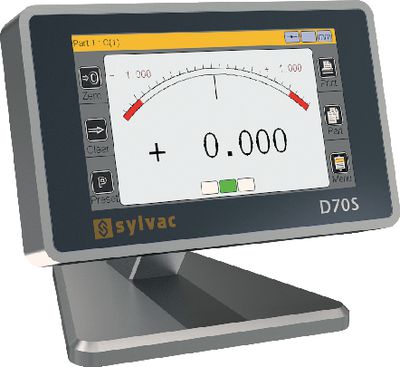

Display unit SYLVAC D70 IP40

2-year guarantee
Thanks to the robust aluminium case with industrial touch screen, the display unit is oil / liquid resistant and therefore very well suited for industrial use. Depending on the version, max. 2 measuring probes or air measuring pluges/rings from the same manufacturer can be connected. Numerous functions can be defined via touch screen inputs, e.g. nominal values, tolerances, presets, etc. Data export to a PC is done via RS-232 or USB.

Designs:
131560.1000: D70S 2x input SYLVAC capacitive
131560.1100: D70I 2x input SYLVAC inductive
131560.1200: D70H 2x input HEIDENHAIN 1Vpp

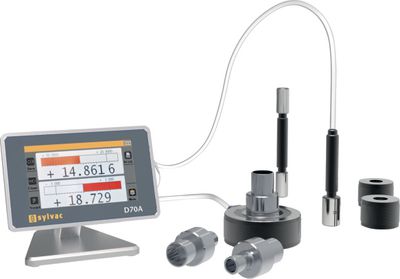

131560.2100: D70A 1x input air measurement
131560.2200: D70A 2x input air measurement

Features:

• Dimensions 140 x 105 x 111 mm

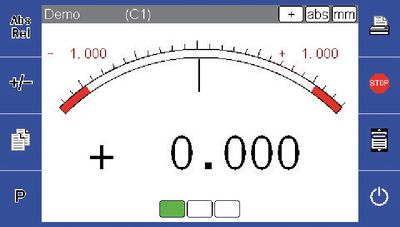

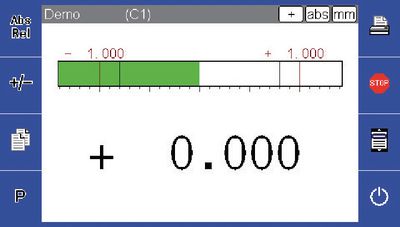

• Non-glare touchscreen colour display 4.3"
• High-resolution digital display (2 - 5 decimal places)
• Mini-USB connection (power supply 5V and data export)
• Data output RS-232 (data export)
• Connection for foot switch

Software functions:

• Drop-down menus
• Language selection
• Automatic measuring probe detection
• Calibration function
• Tolerance monitoring
• Absolute / relative mode
• Conversion mm / inch
• Reverse measuring direction
• Calculation formulas
• Keyboard lock
• Tolerance monitoring Go/NoGo
• Max / min / delta / max-min calculation

Package contents:
Delivered in transport packaging incl. mains adapter and operating instructions.
