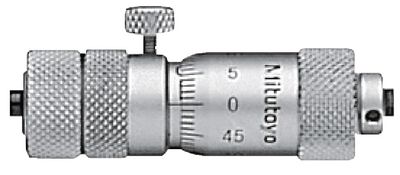

Internal micrometer MITUTOYO

Series 137 - version for measuring internal dimensions with 2-point contact. Individual adaptation of the measuring range by using extensions. Scale barrel and sleeve matt chrome-plated, measuring surfaces carbide-coated.

Designs:
118650.0100: with extensions 13, 25, 50 mm
118650.0200: with extensions 13, 25, 2x 50, 100 mm
118650.0300: with extensions 13, 25, 2x 50, 100, 200 mm
118650.0400: with extensions 13, 25, 2x 50, 100, 2x 200, 300 mm
118650.0500: with extensions 13, 25, 2x 50, 100, 3x 200, 2x 300 mm

Accuracy:
± (3 + n + L/50) μm
n = Number of rods
L = Maximum measuring length (mm)

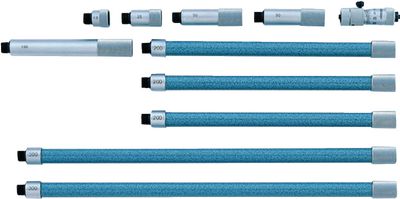

Package contents:
Delivered in case incl. extensions.
