GT42 / GT44 - Measuring probe for use where space is limited.

Designs:

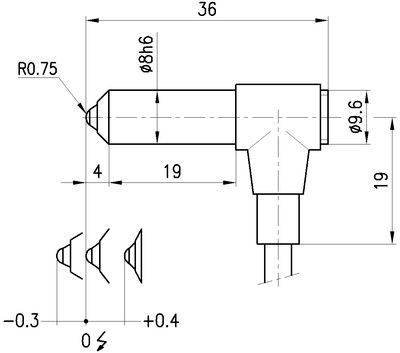

132235.0100: GT42
Normal version, protection type IP65, measuring pressure 0.63 N, stroke 0.7 mm, measuring pin lifting vacuum, measuring pin membrane spring lead, carbide measuring surface R 0.75 mm, cable

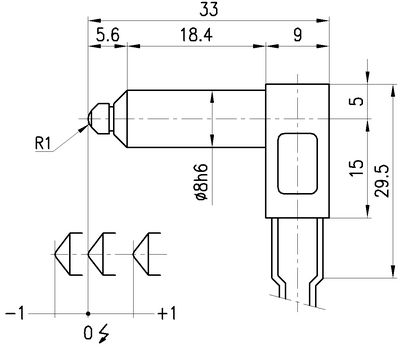

132235.0200: GT44
Normal version, IP65 protection, measuring force 0.4 N, stroke 2.1 mm, measuring pin lifting vacuum, measuring pin guided by plain bearing, exchangeable M2 measuring insert with carbide measuring surface R 1 mm, cable radial

Features:

Version with protection bellows
Clamping shaft Ø 8 mm
Cable length 2 m

Package contents:
Delivered with inspection report.
Appropriate Measuring Inserts:
124008 Measuring inserts M2.5 FUTURO
124010 Measuring inserts M2.5
710140 Measuring insert for comparator M 2.5 VOH
735820 Polymer dial gauge feeler TECHNIWATCH
Usable with:
131980 Display unit METRO M3
132020 Module M-Bus METRO
132205 Display unit TESATRONIC TWIN-T10
132206 Display unit TESATRONIC
132207 Display unit TESATRONIC TWIN-T20 Dual high-precision metrological display

Measuring probe TESA inductiv GT4 IP65
